1. What is an RCCB and Why Should I Care?

Let's face it, electrical safety isn't exactly the most thrilling topic. But trust me, understanding how your Residual Current Circuit Breaker (RCCB) works can save you from a shocking experience — literally! An RCCB, sometimes called an RCD (Residual Current Device), is a life-saving gadget that monitors the flow of electricity in a circuit. Its designed to quickly cut off the power if it detects an imbalance, preventing electric shocks and potentially even fires.

Think of it like this: electricity is supposed to travel out to your appliance and then neatly return, like a well-behaved guest. The RCCB is the vigilant host, making sure everyone arrives back safe and sound. If someone tries to sneak off unnoticed (a current leak!), the RCCB immediately kicks them out (trips the circuit!).

So, why should you care? Because electricity can be dangerous. An RCCB provides an extra layer of protection beyond what a regular circuit breaker offers. It detects leakage currents that are too small for a regular breaker to notice, but still large enough to give you a nasty jolt. It's especially important in areas with water, like bathrooms and kitchens, where the risk of electric shock is higher. You know, that tingly feeling when you touch a faulty appliance? RCCB is meant to prevent that.

In short, understanding your RCCB and what causes it to trip is crucial for maintaining a safe home or workplace. It's like having a silent guardian watching over your electrical system, ready to jump into action when needed.

Различные типы RCCB и их использование

The Overload Conundrum

2. Distinguishing Overloads from Faults

Now, lets get to the heart of the matter: Does an overload cause an RCCB to trip? The short answer is usually no, but there's a bit more to it than that. To understand why, we need to differentiate between an overload and other types of electrical faults, particularly earth leakage.

An overload happens when you try to draw more current from a circuit than it's designed to handle. Imagine trying to squeeze an elephant through a mouse hole. The circuit cant cope with the demand, leading to overheating of the wires. This is where a regular circuit breaker (MCB) comes in. MCBs are designed to trip in response to overloads and short circuits.

RCCBs, on the other hand, are specifically designed to detect earth leakage currents. These are currents that flow through an unintended path, such as through a person touching a faulty appliance. It's this detection of imbalance between outgoing and returning current that triggers an RCCB trip. Think of it as the RCCB sensing that someone is cutting corners and taking an unauthorized route back to the source. They only act if there are differences between the electricity going out to the device and the electricity returning from it.

So, while an overload itself wont directly cause an RCCB to trip, there are scenarios where an overload could indirectly lead to an RCCB tripping. For example, if an overloaded appliance experiences damage that causes a leakage current, the RCCB will trip. It's like the overload indirectly causing the "leak" that the RCCB detects.

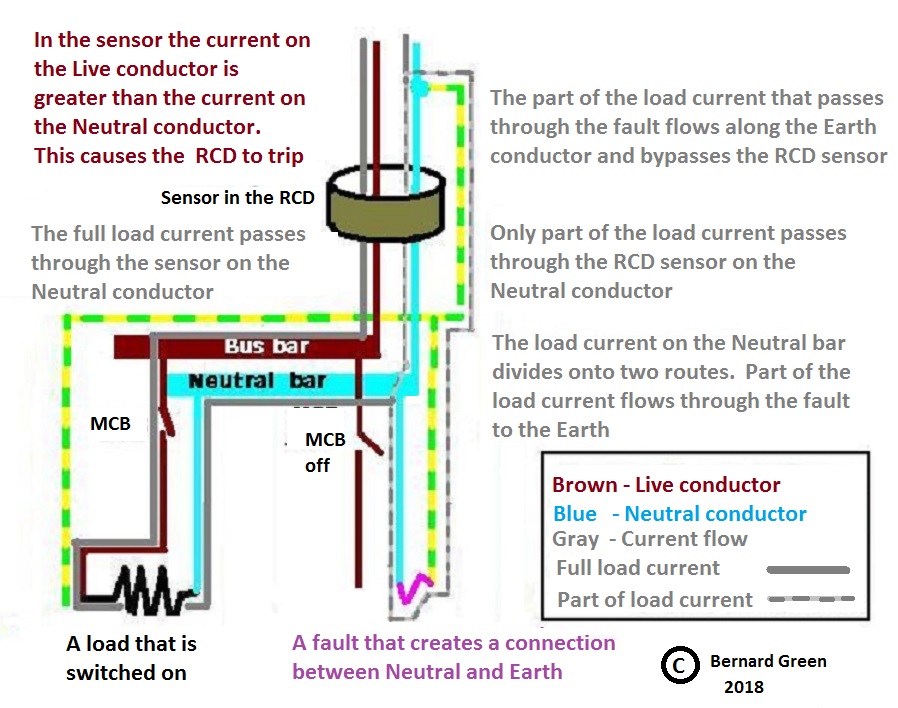

Main RCCB Keeps Tripping DIYnot Forums

When Overloads and Leakage Collide

3. Indirect Effects of Overload on RCCB Functionality

Okay, so an overload doesn't directly trip an RCCB, but it can certainly set the stage for a potential RCCB trip if things go south (electrically speaking!). Imagine you're running several high-power appliances on the same circuit — a hairdryer, a space heater, and maybe even a waffle iron for a Sunday brunch feast. The circuit is groaning under the strain, and the wires are getting hotter than a freshly cooked waffle.

If this overload continues unchecked, it can damage the insulation of the wires within the appliances or the circuit itself. Think of the insulation as the electrical system's protective jacket. When the "jacket" starts to fray or melt due to excessive heat, bare wires might come into contact with the appliance's metal casing or, worse, with ground. This creates a leakage path, allowing current to escape instead of returning through the intended circuit.

This is where the RCCB steps in like a superhero. It detects this leakage current, recognizing that electricity is flowing where it shouldn't be. And bam! It trips the circuit, cutting off the power and preventing a potentially dangerous electric shock. So, while the overload itself didn't cause the trip, it created the conditions that allowed a leakage current to occur, triggering the RCCB.

It's like a chain reaction: Overload → Damaged Insulation → Leakage Current → RCCB Trip. Understanding this chain is vital for preventing electrical hazards. Prevention of overloads is crucial for safety, preventing leakage as well as preventing trips in the first place!

The Real Culprit

4. How RCCBs Detect Leakage and Why It Matters

Now, let's zoom in on the star of the show: earth leakage currents. These are the rogue currents that RCCBs are specifically designed to detect. Imagine a tiny electrical rebel deciding to take an unauthorized detour instead of following the designated path back to the power source. This "detour" often involves flowing through something it shouldn't, like a person touching a faulty appliance.

An RCCB works by constantly monitoring the balance of current flowing in and out of a circuit. Ideally, the amount of current going out should be exactly the same as the amount of current coming back. However, if some current leaks to earth — perhaps through a damaged appliance or a faulty wire — there will be an imbalance. The RCCB detects this imbalance, even if it's a very small amount, and instantly trips the circuit.

The sensitivity of RCCBs is measured in milliamperes (mA). A typical RCCB used in homes is designed to trip at a leakage current of 30mA. This is a very small current, but it's enough to cause a potentially fatal electric shock. Think of it this way: the RCCB is designed to protect you from currents that are too small for a regular circuit breaker to notice, but still large enough to be dangerous. The speed is also important. These devices are built to respond rapidly, mitigating the effect of electrocution.

So, while an overload might contribute to the conditions that lead to earth leakage, it's the leakage itself that triggers the RCCB. Understanding this distinction is crucial for troubleshooting electrical issues and ensuring your safety. Knowing what the RCCB protects against, and what it ignores, is crucial for understanding why it does what it does.

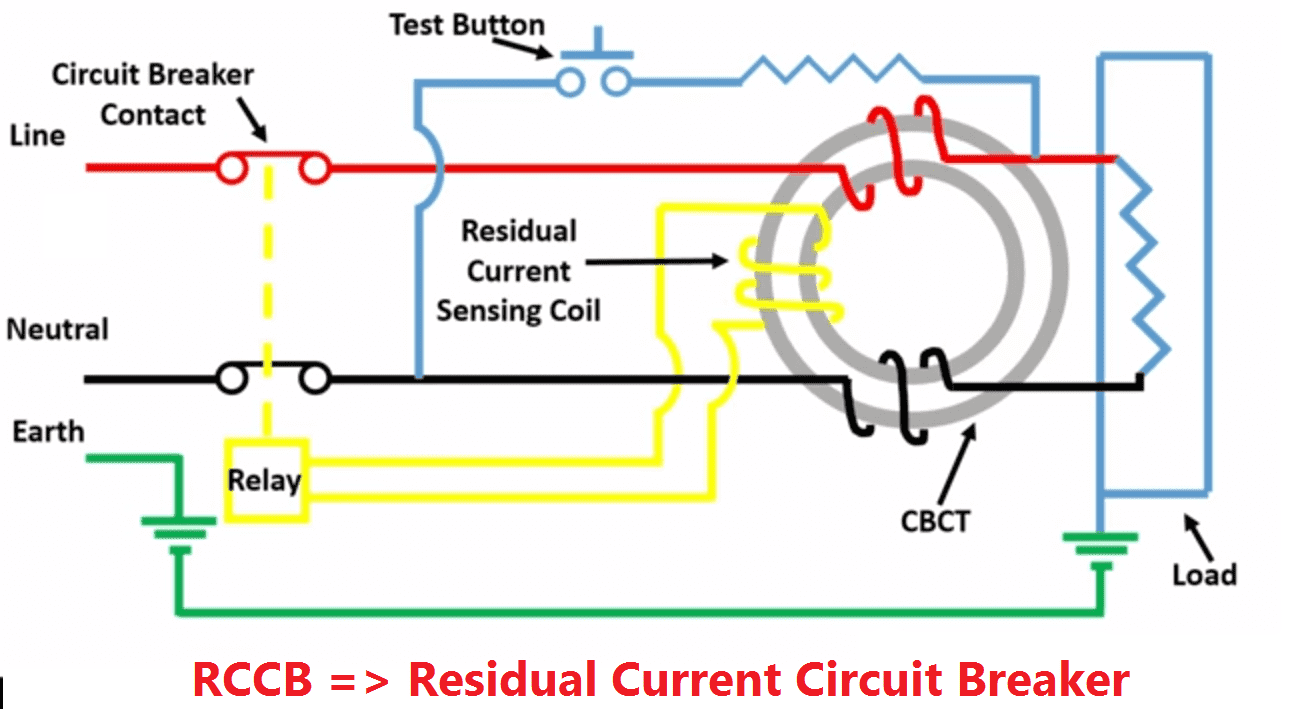

With A Neat Circuit Diagram Explain The Operation Of MCB And RCCB VTU

Preventing Trips and Staying Safe

5. Troubleshooting and Maintenance Tips

Okay, you now know that RCCBs are lifesavers, protecting you from dangerous earth leakage currents. But what can you do to prevent nuisance trips and keep your electrical system running smoothly? Here are a few practical tips:

First, avoid overloading circuits. Don't plug too many high-power appliances into the same outlet or circuit. If you consistently trip circuit breakers, it's a sign that you need to spread the load or consider adding additional circuits. Think of it like this: don't try to fit an entire football team into a Mini Cooper!

Regularly inspect your appliances and electrical cords for damage. Look for frayed wires, cracked insulation, and loose connections. If you find any damage, repair or replace the appliance immediately. Don't take chances with electricity! Prevention is better than cure, and a quick visual inspection can save you from a lot of trouble. Electrical safety checks are the best way to ensure all equipment, and wiring is up to safety standards.

Consider using surge protectors to protect your sensitive electronic equipment from voltage spikes and surges. These surges can damage the insulation of wires and components, potentially leading to leakage currents. Surge protectors are like insurance for your electronics, guarding them against unexpected power surges.

Finally, if you're experiencing frequent RCCB trips and you can't identify the cause, call a qualified electrician. Don't attempt to diagnose or repair electrical problems yourself unless you're properly trained and equipped. Electricity is not something to mess around with! A professional can quickly identify the source of the problem and ensure that your electrical system is safe and functioning properly. After all, you wouldnt perform your own surgery, would you?
