1. Understanding the Basics

So, you're tinkering with electronics, huh? That's awesome! You've probably run into both transistors and MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors). And the big question pops up: "Can I just swap one for the other?" Well, it's not quite as simple as grabbing a wrench and tightening a bolt, but let's break it down in a way that won't fry your brain — or your circuit!

Think of transistors as the reliable workhorses of electronics, and MOSFETs as the sleek, energy-efficient sports cars. Both can amplify and switch signals, but they do it in slightly different ways. Transistors (specifically BJTs, or Bipolar Junction Transistors) control current flow using a small current at the base. MOSFETs, on the other hand, use a voltage applied to the gate to control current flow between the source and drain. This key difference leads to some interesting implications.

Imagine trying to control a water faucet. A transistor is like turning the faucet handle with another, smaller stream of water. A MOSFET is like controlling the faucet with a knob — you're not actually using water to control the flow, just your hand (voltage). That's a simplified analogy, but it gets the core concept across.

This fundamental difference in control mechanism is where the magic happens (and also where the potential for smoke and sparks arises if you're not careful!). We'll delve into the specifics shortly, but keep this in mind: MOSFETs are generally more efficient because they require virtually no current at the gate to operate.

Difference Between Mosfet And Npn Transistor At Randee Andes Blog

The Nitty-Gritty

2. Voltage vs. Current Control

Alright, let's get a little more technical, but still keep it friendly. Weve established that transistors are current-controlled devices and MOSFETs are voltage-controlled. What does that really mean for you, the circuit builder? It means that to turn a transistor on or off, you need to supply a small amount of current to its base. This current flows into the base. MOSFETs, however, need a voltage applied to their gate. Crucially, almost no current actually flows into the gate. It's like building up a charge to create an electric field that opens the "channel" between the source and drain.

This difference is huge for a few reasons. First, the lack of gate current in a MOSFET means that they have much higher input impedance. In simpler terms, they don't load down the circuit driving them nearly as much as a transistor does. Imagine trying to push a heavy cart — that's like driving a transistor. Now imagine just tapping it lightly to make it move — that's like driving a MOSFET. The MOSFET doesn't require much effort from the previous stage in the circuit.

Second, the power required to switch a MOSFET is generally lower than that required to switch a transistor. This makes MOSFETs ideal for applications where power efficiency is critical, such as in battery-powered devices or high-frequency switching power supplies. Think smartphones versus old tube radios — one sip of energy versus a whole gulp!

Finally, because of this voltage-controlled characteristic, MOSFETs are more easily controlled by digital circuits. The output of a microcontroller, for example, is typically a voltage. It's much easier to directly drive a MOSFET with a microcontroller output than it is to drive a transistor (which usually requires some extra components like resistors).

What Are MOSFETs? Semiconductor SHINDENGEN ELECTRIC MFG.CO.,LTD

Interchangeability

3. Pin Configuration and Biasing

Here's the million-dollar question: can you just pluck out a transistor and pop in a MOSFET? The answer is, frustratingly, "it depends." Directly swapping them without considering the circuit is a recipe for disaster (and potentially expensive component replacement!). The pin configuration is almost always different. Transistors usually have a Base, Collector, and Emitter (BCE), while MOSFETs have a Gate, Drain, and Source (GDS). These pins perform entirely different functions, so connecting them incorrectly will not work.

Even if the pinout magically matched, you'd still need to consider the biasing. Transistors and MOSFETs require different biasing schemes to operate correctly. Biasing refers to setting the correct DC voltage and current levels to ensure that the device operates in its intended region (e.g., active region for amplification, saturation region for switching). A transistor might need a resistor network to set its base current, while a MOSFET might need a different set of resistors to set its gate voltage. Simply plugging in a MOSFET into a circuit designed for a transistor will likely result in the MOSFET being either permanently on or permanently off.

Furthermore, voltage levels are critical. The voltages required to turn on a MOSFET (the gate threshold voltage) are often very different from the voltage required to turn on a transistor. A transistor might turn on with a base-emitter voltage of 0.7V, while a MOSFET might require a gate-source voltage of 3V or more. Therefore, the existing voltage levels in the circuit might not be sufficient to properly drive the MOSFET.

So, the golden rule is: always consult the datasheets for both the transistor you're replacing and the MOSFET you're considering using. Understand their pinouts, biasing requirements, and voltage characteristics. Compare them carefully before even thinking about making a swap. It's better to spend a little time researching than to spend a lot of time (and money) fixing a fried circuit.

Unleashing The Power Of MOSFETs (MetalOxideSemiconductor FieldEffect

When MOSFETs Shine

4. Power Switching and Amplification

Okay, so MOSFETs aren't always a direct replacement, but they do have some areas where they really excel. One of their biggest strengths is in power switching applications. Because they can handle large currents and voltages with very low on-resistance (the resistance when the MOSFET is turned "on"), they're perfect for switching power supplies, motor controllers, and other high-power circuits. Think of them as incredibly efficient electronic relays.

Another area where MOSFETs shine is in high-frequency applications. Their lower input capacitance and faster switching speeds compared to transistors make them suitable for RF amplifiers, high-speed digital circuits, and other applications where speed is paramount. Imagine them as sprinters versus marathon runners — quick bursts of power versus sustained endurance.

MOSFETs are also heavily used in audio amplifiers, particularly in Class D amplifiers. These amplifiers use MOSFETs to switch the power to the speaker on and off rapidly, creating a pulse-width modulated (PWM) signal that approximates the audio waveform. Class D amplifiers are highly efficient, making them ideal for portable audio devices and other applications where power consumption is critical.

Finally, due to their ease of interfacing with digital circuits, MOSFETs are commonly used as switches controlled by microcontrollers. For example, you might use a MOSFET to control a relay, a motor, or an LED based on the output of a microcontroller. This makes them an essential component in countless embedded systems and DIY electronics projects.

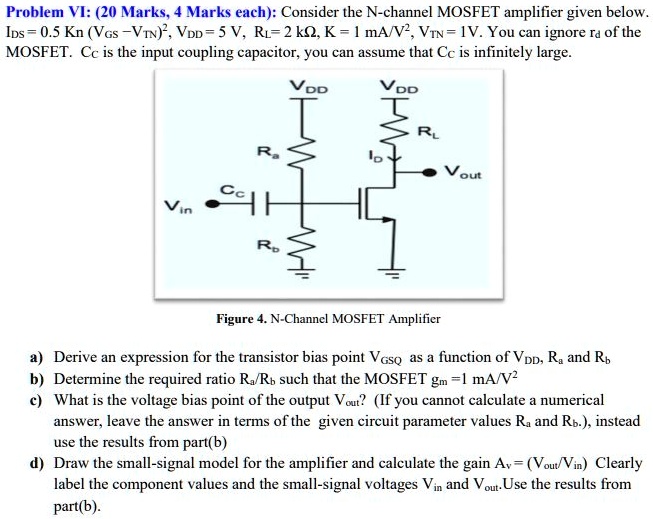

SOLVED Problem VI (20 Marks, 4 Marks Each) Consider The Nchannel

The Transistor's Turf

5. Low Voltage and Specific Amplifier Designs

Despite the MOSFET's prowess, the humble transistor (BJT) still has its place in the electronic ecosystem. In some low-voltage applications, BJTs can actually be more efficient and easier to implement than MOSFETs. This is particularly true when dealing with very small signals or when the available voltage is very limited. Sometimes the old-school approach is the simplest.

BJTs are also preferred in certain amplifier designs, particularly those requiring very precise control of gain and linearity. The characteristics of BJTs are often more predictable and stable than those of MOSFETs, making them easier to design with in certain situations. Think of it as choosing a finely crafted tool over a more versatile but less precise one.

Furthermore, BJTs are still commonly used in older circuit designs and legacy equipment. Replacing every BJT with a MOSFET would be a massive undertaking, so many engineers continue to use them in these contexts. If it ain't broke, don't fix it, right?

Ultimately, the choice between a transistor and a MOSFET depends on the specific requirements of the application. There's no one-size-fits-all answer. It's about understanding the strengths and weaknesses of each device and choosing the best tool for the job. It's a bit like choosing between a hammer and a screwdriver — both are useful, but they're designed for different tasks.

Transistor Vs Mosfet Perbedaan Dan Apa Itu Eroppa

FAQ

6. Your Burning Questions Answered

Let's tackle some frequently asked questions to further clarify the MOSFET vs. transistor debate.

Q: Can I use a MOSFET as a simple on/off switch controlled by a microcontroller?
A: Absolutely! MOSFETs are fantastic for this. Just make sure the microcontroller's output voltage is high enough to fully turn on the MOSFET (check the datasheet for the gate threshold voltage) and use a resistor to limit the current into the microcontroller's output pin.

Q: What happens if I apply too much voltage to the gate of a MOSFET?
A: Bad things! You'll likely destroy the MOSFET. The gate-source voltage (Vgs) has a maximum rating that you absolutely must not exceed. Exceeding this voltage can punch through the gate oxide, permanently damaging the device. Consult the datasheet!

Q: Are MOSFETs more expensive than transistors?
A: Generally, no. For common types, prices are comparable. However, high-performance MOSFETs (e.g., those with very low on-resistance or high voltage ratings) can be more expensive than standard transistors. It depends on the specific device and its specifications.
